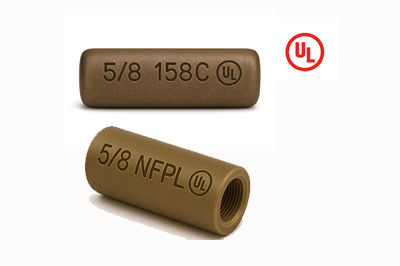

Silicon Bronze Coupler (UL, threaded or non-threaded)

Couplers are essential connecting components in electrical grounding systems. They are available in two forms: thread less compression couplers or UNC threaded connectors designed for use with pointed copper-bonded grounding rods. They are used to join two ground rods or extend a ground rod. The inside of the coupler is tapered, allowing the ground rod to compress during installation, forming an irreversible conductive connection. This ensures a robust and reliable grounding solution for various electrical applications.


Our couplers are made of silicon bronze material, an alloy known for its excellent corrosion resistance, high strength, and good electrical conductivity.

Features:

Threadless Compression Coupler for use with pointed copper-bonded ground rods

UNC Threaded Couplers for use with threaded copper-bonded ground rods

Inside of coupler is tapered so ground rod compresses during installation to form an irreversible conductive connection

Chamfered on both ends for easy driving

Threaded couplings are made of high grade material for higher strength

Corrosion resistant ensures lasting low resistance

Counter bores for protecting the rod threads from damage

Available in 1/2“, 5/8”, 3/4” and 1” diameter sizes

Feature	Threaded Coupler	Compression Coupler
Rod End Type	Threaded	Plain
Installation	Screw-on with wrench	Hammer/crimp
Reusability	High	Low
Cost	Higher	Lower
UL Approval	Common	Less common
Mechanical Strength	Strong	Moderate
Manufacturing Need	Threading required	No threading needed

Specifications

Material: Silicon Bronze
