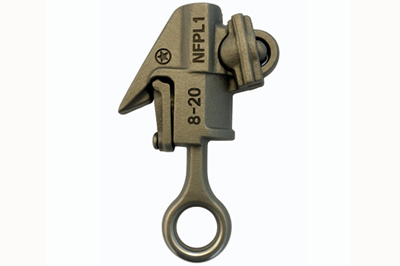

Hot line clamps are specialized electrical connectors used to secure and connect conductors (wires) while the system is energized. They allow for sale maintenance and repair without needing to shut down the power. These clamps are designed to grip the conductor tightly, ensuring a reliable electrical connection. They are typically used in overhead power lines, distribution systems, and other high- voltage applications. Hot line clamps come in various designs to accommodate different conductor sizes and conf1gurations, providing a vital solution for utility workers and maintenance crews.

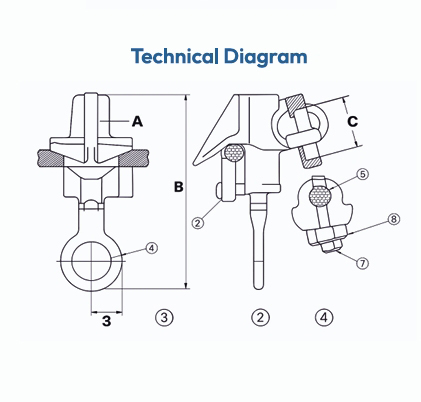

| Label Number | Description | Material |
|---|---|---|
| 1 | Body | Bronze |
| 2 | Keeper | Bronze |
| 3 | Washer on eye stem | Stainless steel |
| 4 | Eye stem | Stainless steel |
| 5 | Drive Pin | Stainless steel |
| 6 | Eye-bolt | Bronze |
| 7 | Washer on bolt | Stainless steel |
| 8 | Nut | Stainless steel |
| Catalog No. | Body | Conductor Range (Main) | Conductor Range (Tap) | AWG or KCMIL (Main) | DIM A | DIM B |
DIM C | Eyebolt Hardware | Wrench Size | Packaging qty. |
|---|---|---|---|---|---|---|---|---|---|---|
| NFHLC1 | CDA956 | 0.128 - 0.419 (inch) | 0.128 - 0.419 (inch) | #8 SOL. – 2/0 STR. | 1.36" | 5" | 1.11" | 3/8" | 9/16" | 25 |
| NFHLC2 | CDA956 | 0.162 - 0.745 (inch) | 0.162 - 0.528 (inch) | #6 SOL. – 4/0 STR. | 1.76" | 6.750" | 1.40" | 7/16" | 9/16" | 25 |
